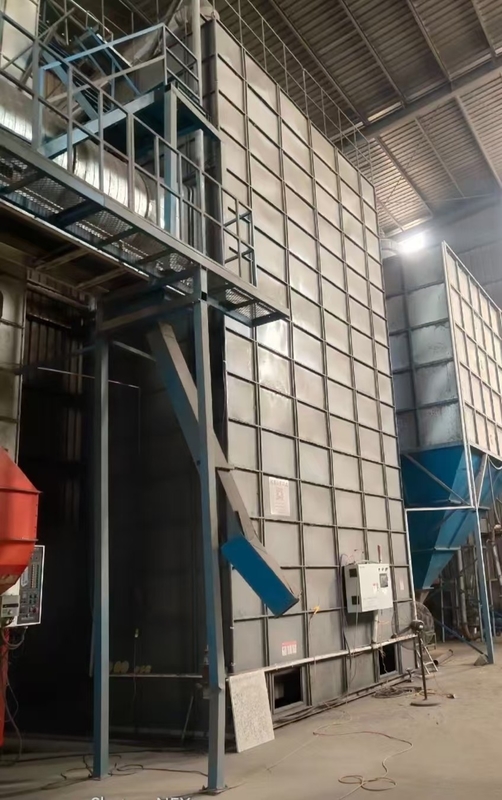

Grain Dryer Biomass Burner With Clean And Safe Heat 1.5Million Kcal/H

Grain Dryer Biomass Burner With Clean And Safe Heat 1.5Million Kcal/H

Biomass Burner Grain Dryer

Clean And Safe Heat Grain Dryer

1.5 Million Kcal/H Grain Dryer

Place of Origin:

China

Brand Name:

ZENVO

Certification:

CE

Model Number:

5L-150

Contact Us

Request A Quote
Product Details
Combustion:
Floating Combustion
Heat Exchange:
Indirect Heating
Total Power:
17.55KW
Dimension:
59000*6430*8520
Run 30 T/b Dryer:
5-6 Sets
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
in Bulk
Delivery Time
35 working days
Payment Terms
T/T, L/C
Supply Ability
30 sets per month
Product Description

Biomass Burner with clean and safe heat 1.5Million Kcal/h for grain dryer



Biomass burner is the company for the use of renewable resources, energy saving development of a new model. This model has biomass husk generator, coarse bran feeder, ash and smoke removal system, etc., each step is automatic control, the temperature can be accurately controlled at ±1 °C. The structure design is reasonable, the technical performance indicators have met the requirements of the plan, the series of bran furnace dryer, the use of biomass bran as fuel, save energy and reduce costs.



Features:
.High heating efficiency, low drying costs.
.Constant temperature brings tasty rice and quality seeds.
. Easy operation system with multi-dryers control simultaneously.
. Fully automatic touch screen control, easy operation
· Indirect heating, clean hot air, no pollution to grain
. Auto control of husk feeding, combustion and hot air volume..
. Ash is easy auto collected for Industrial insulation material, organic fertilizers etc.
·Stainless steel or carbon steel core components, high heat conductivity, long service life.



Detailed Parameters



Parameter name Value
Thermal power KJ/h 1,500,000
Combustion Type Suspension
Heat exchanger method Indirect heating
Power 17.55 kw
Heat efficiency ≥80%
Husk Consumption 220~550 kgs/h
Ash Discharge 40-95 kgs/h
Number of dryers heated 5-6 sets
Fuel Paddy Husk,Sawdust and other Bio Fuels
Dimension L×W×H(mm) 5900*6430*8520
