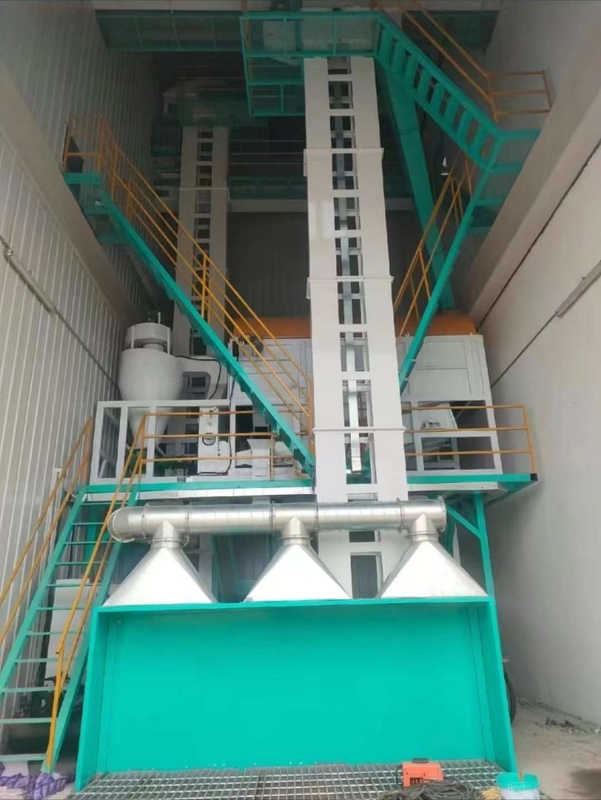

50 Ton/H Galvanized Bucket Elevator For Paddy Drying Plant

50 Ton/H Galvanized Bucket Elevator For Paddy Drying Plant

50 Ton/H Galvanized Bucket Elevator

Paddy Drying Plant Galvanized Bucket Elevator

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Carbon Steel
Food Industry
50 Ton Per Hour
Rotating Speed:
80 R/min
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
in Bulk
Delivery Time
15 working days
Payment Terms
T/T, L/C
Supply Ability
100 sets per month
Product Description

50 Ton Per Hour Capacity Galvanized Bucket Elevator For Paddy Drying Plant

Bucket elevators (also called bucket conveyors) are continuous conveyors used to vertically convey all kinds of bulk materials.

A bucket elevator has a top station (with a drive shaft, motor, and gear drive) and a bottom return-end station. The steel elevator shafts in which the buckets are moved up and down between the redirecting stations are referred to as "shafts", "trunking" or "bucket Elevator legs".

In a bucket elevator,Rectangle buckets made of steel or plastic are attached to a pulling element that moves in a continuous loop, i.e., a roller chain (in chain-driven bucket elevators) or a belt (in belt-driven bucket elevators).
These buckets continuously are loaded with material by means of hoppers or chutes. The material is then conveyed upwards and is tipped into a discharge chute behind the top redirecting station.

Depending on their overall width, their bucket capacity, and the height that must be traversed, bucket elevators can require a large amount of power.



Model Bucket Size Capacity Tube center distance Rotating speed
DTG2618 188*125 mm 9~12 t/h 405 mm 130 r/min
DTG3423 235*125 mm 18~20 t/h 493mm 90 r/min
DTG3628 280*140 mm 30~35 t/h 560 mm 80 r/min
DTG5033 315*190 mm 50~60 t/h 695 mm 80 r/min
DTG6033 315*220 mm 65~70 t/h 752 mm 80 r/min
DTG6046 460*220 mm 70~75 t/h 790 mm 80 r/min

Can be customized according to needs
