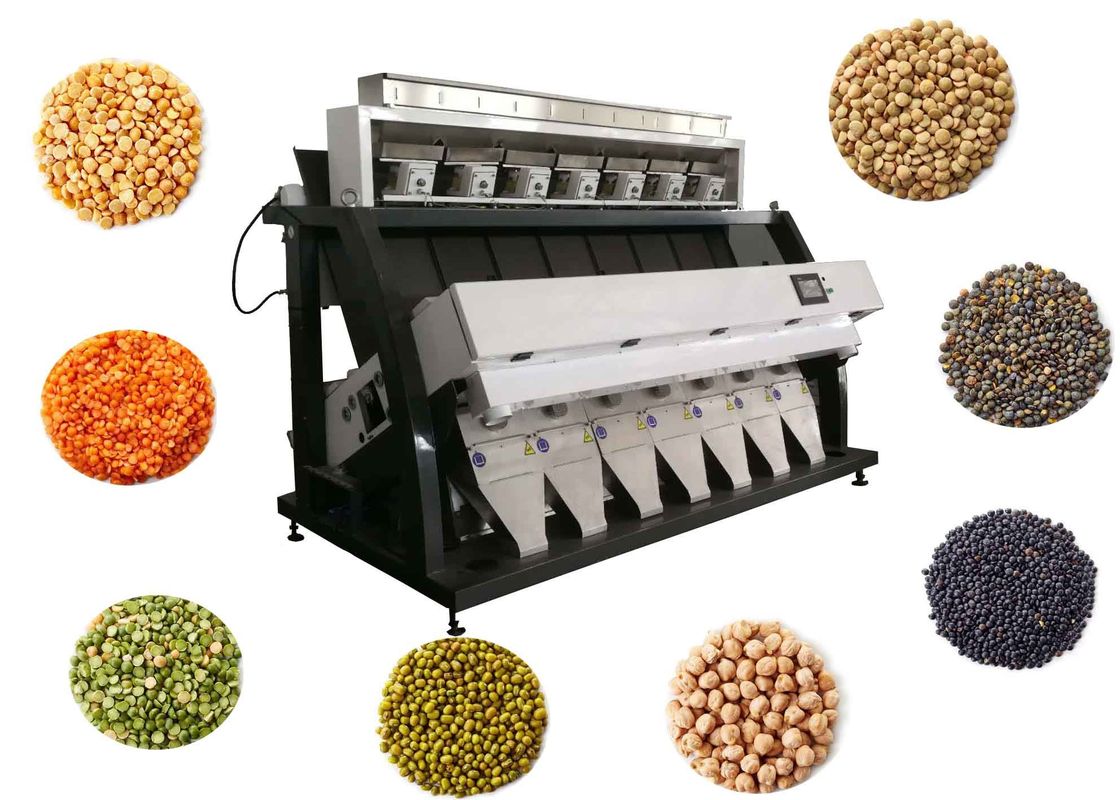

| Product Name: | CCD Color Sorter Machine | Applications: | Various Cereals |
|---|---|---|---|
| Accuracy: | 99.99% | Capacity: | 7 Ton/h |
| After Sales Service: | Available | Installation: | Available |
| High Light: | raisin sorting machine,cereal color sorter,7 Chutes Optical Sorting Machine |
||
Sorting Applications
Product Parameters
| Model | Channels(t/h) | Throughput | Accuracy(%) | Optimized Carryover | Power(Kw) | Dimension(mm)(L*W*H) | Weight(Kg) |
|---|---|---|---|---|---|---|---|
| S3 | 192 | 2~5 | 99.99 | ≥12:1 | 2.0 | 1650*1580*1870 | 1030 |
| S4 | 256 | 2.5~6 | 99.99 | ≥12:1 | 2.4 | 1970*1580*1870 | 1180 |
| S5 | 320 | 3.5~8 | 99.99 | ≥12:1 | 2.9 | 2290*1580*1870 | 1330 |
| S6 | 384 | 4.5~10 | 99.99 | ≥12:1 | 3.4 | 2610*1580*1870 | 1480 |
| S7 | 448 | 5.5~12 | 99.99 | ≥12:1 | 3.9 | 2930*1580*1870 | 1630 |
| S8 | 512 | 6~14 | 99.99 | ≥12:1 | 4.4 | 3250*1580*1870 | 1780 |
The above parameters are for reference only and may vary as per types of raw materials and contamination rate.
Specific parameters will be altered according to different material and contamination rate on site of customers.
Advantages:
|
Tri-chromatic CCD Image Acquisition System 5400 pixel, identify 0.01mm2 defects. |
Intelligent Image Processing Algorithm ALTERA FPGA, intelligent & speedy . |
Premium Light System LED lighting, higher stability. |
Advanced Feeding System Special anodized chute, higher capacity. |
|
Excellent Rejection Rate Quality image acquisition& processing& nozzle system |
