Place of Origin:
CHINA
Brand Name:
ZENVO
Certification:
ISO9001
Model Number:
S1
Contact Us
Advantages:

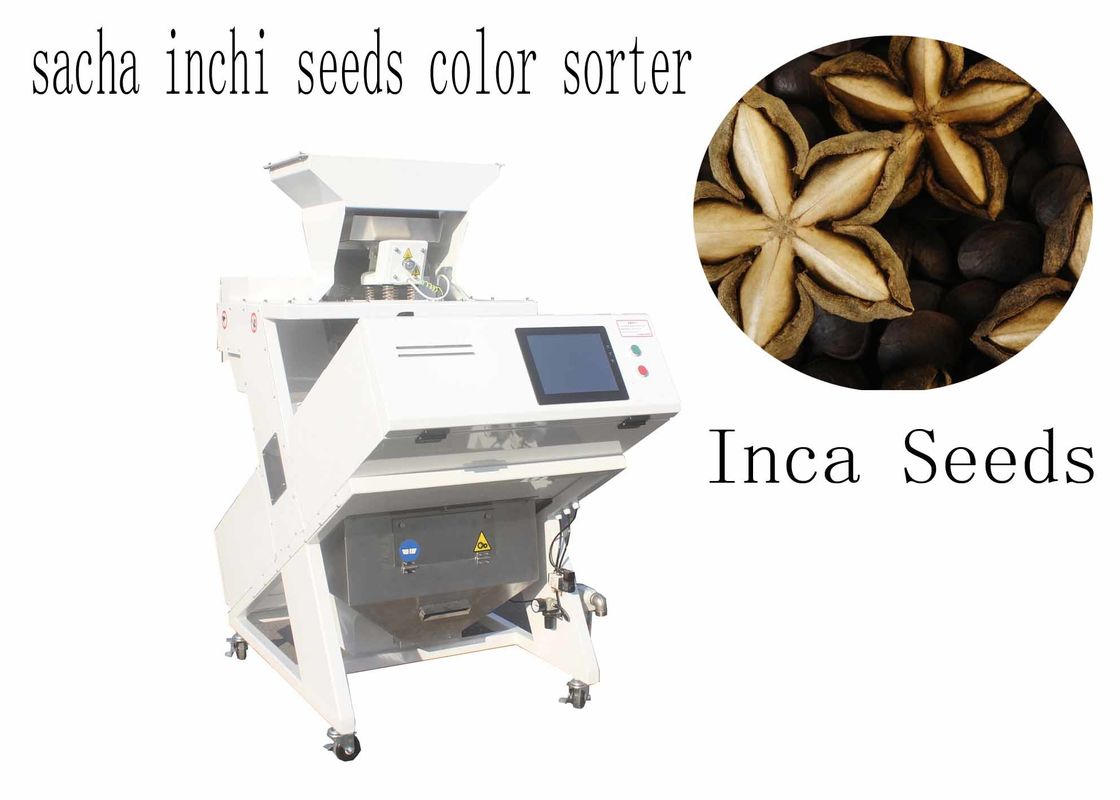

The color sorter adopt full color 5400+pixel high performances CCD sensors with the definition up to 0.01mm.
The sorter adopts high quality special industrial lenses designed and manufactured for color detection.
The high speed DSP technology provides the sorter with fast detection and high identification rate.
Master control system adopts ARM high-end embeded processor to enhance and control the speed and color selection precision effectively.
Overall unit adopts intelligent closed-loop control system.
The operation interface adopts industrial grade touch screen and features simple parameter setting and easy operation.
High speed ejector is used to ensure quick response, low power consumption and long service life.
The sorter uses intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.
Product Parameters
| Model | Channels(t/h) | Throughput | Accuracy(%) | Optimized Carryover | Power(Kw) | Dimension(mm)(L*W*H) | Weight(Kg) |
|---|---|---|---|---|---|---|---|
| S1 | 64 | 1~2 | 99.99 | ≥12:1 | 1.0 | 920*1500*1870 | 330 |
| S4 | 256 | 2.5~6 | 99.99 | ≥12:1 | 2.4 | 1970*1580*1870 | 1180 |
| S5 | 320 | 3.5~8 | 99.99 | ≥12:1 | 2.9 | 2290*1580*1870 | 1330 |
| S6 | 384 | 4.5~10 | 99.99 | ≥12:1 | 3.4 | 2610*1580*1870 | 1480 |
| S7 | 448 | 5.5~12 | 99.99 | ≥12:1 | 3.9 | 2930*1580*1870 | 1630 |
| S8 | 512 | 6~14 | 99.99 | ≥12:1 | 4.4 | 3250*1580*1870 | 1780 |
The above parameters are for reference only and may vary as per types of raw materials and contamination rate.
Specific parameters will be altered according to different material and contamination rate on site of customers.
Advantages:
|
Tri-chromatic CCD Image Acquisition System 5400 pixel, identify 0.01mm2 defects. |
Intelligent Image Processing Algorithm ALTERA FPGA, intelligent & speedy . |
Premium Light System LED lighting, higher stability. |
Advanced Feeding System Special anodized chute, higher capacity. |
|
Excellent Rejection Rate Quality image acquisition& processing& nozzle system |
