| HS Code: | 84193100 | Capacity: | 10M3 |
|---|---|---|---|
| Fuel: | Gas, Diesel Etc. | Name: | Mobile Corn Dryer |
| High Light: | mobile grain dryer,portable corn dryer,Industry Portable Batch Grain Dryers |
||

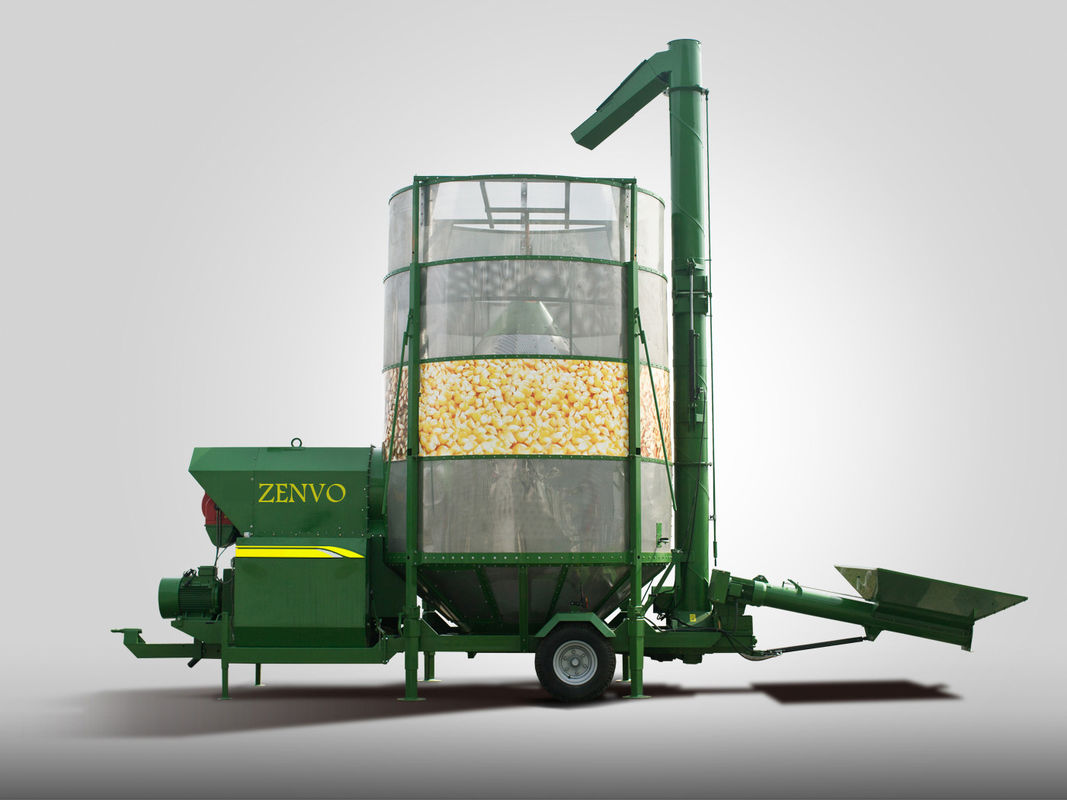

Mobile Grain Dryer for Rice Drying from Capaicty of 10 to 30 M3
ADVANTAGES OF MOBILE GRAIN DRYER
1. Outdoor dryer can reduce building cost
The outdoor dryer needn't build a drying room, small area occupation, shorten the installation period, reduce the cost of the whole equipment; they are very helpful to achieve profitable operations.
2. High moisture paddy or wheat can be dried easily
The internal distribution of "v" shape "hill-shaped multi-tube structure" can circulate mixing grain perfectly, prevent drying inhomogeneous, crackle, over drying etc, high moisture paddy or wheat can be dried easily and the quality can be guaranteed after drying by low temperatures, high winds, comprehensive ventilation structure.
3. Installation working hours can be reduced by semi-products delivery
Many parts have been assembled before delivery, it can reduce installation working hours, reduce the time limit from project and costs on site. In addition, wires and pipe work, wiring material, and the air pipe etc are also carried out simultaneously, when the completion installation of the mechanical parts, they can also be finished together at the same time.
4. Advanced technology in drying industry
The dryer is designed with mixed flow drying principle, resulting in high heating efficiency, low energy consumption and large capacity. By mixed flow and low temperature drying, moisture is reduced slowly and evenly, thus damaging by heating is minimized. The grain is kept in good quality after drying with least cracking.
Product Parameter:
| Model | PRT75/M PRT75/ME |
PRT120/M PRT120/ME |
PRT200/M PRT200/ME |
PRT7250/M PRT250/ME |
|
| Bin capaity(m³) | 10 | 15 | 25 | 31 | |
| Matched power(HP) | 30 | 60 | 80 | 90 | |
| Electrical power(kW) | 15.4 | 22 | 37 | 47.2 | |
| Fan air flow(m³/h) | 11,000 | 28,000 | 40,000 | 53,000 | |
| Maximum burner thermal power(kcal/h) | 330,000 | 600,000 | 900,000 | 900,000 | |
| Holes on the wall of the silo (mm) | 1.5-2.5 | 1.5-2.5 | 1.5-2.5 | 1.5-2.5 | |
| Weight(kg) | M | 1,950 | 3,500 | 4,300 | 4,800 |
| ME | 2,150, | 3,680 | 4,600 | 5,100 | |
| Weight with exchanger(kg) | M-SC | 2,270 | 3,920 | 4,900 | 5,400 |
| ME-SC | 2,470 | 4,100 | 5,200 | 5,700 | |
| Tank capacity(L) | 250 | 380 | 580 | 580 | |
