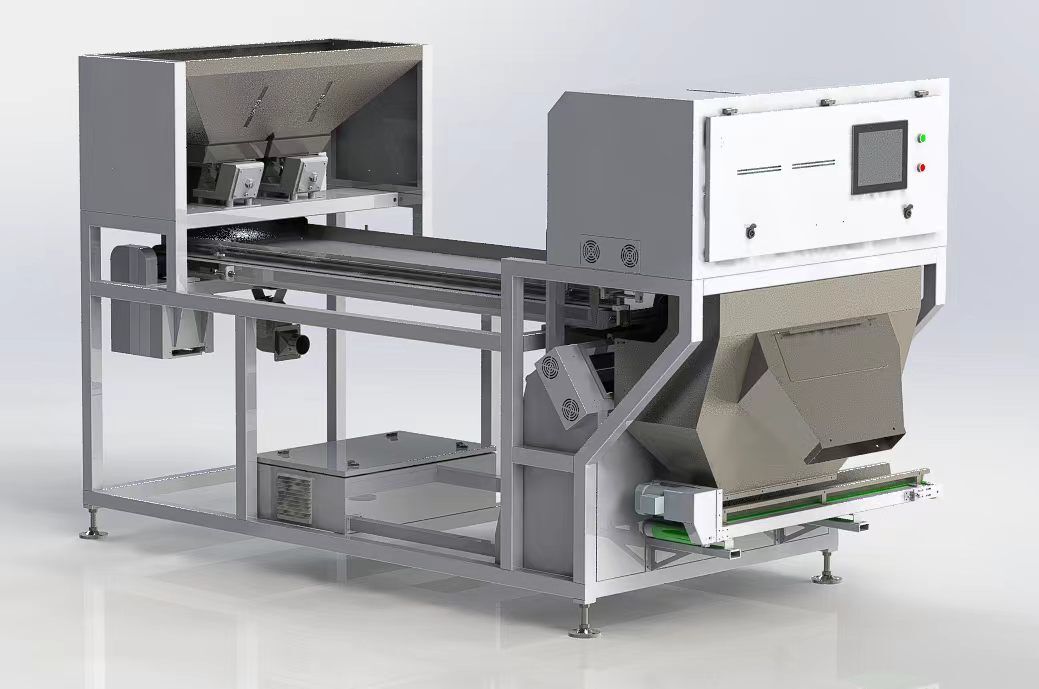

Name: Gentle Sort Belt-Type Fresh Shrimp Color Sorter
Brand: ANHUI ZENVO TECHNOLOGY CO., LTD
SKU: ZLD60-C4L1
Price: 24,999.00 USD
Availability: InStock

Home > Products > CCD Color Sorter >

Gentle Sort Belt-Type Fresh Shrimp Color Sorter

Place of Origin:

China

Brand Name:

ZENVO

Model Number:

ZLD60-C4L1

Request A Quote

Product Details

Accuracy:

>99,9%

Power(Kw):

Size:

2864*1200*1632

Output(T/H):

1.5-2

Weight:

780kg

Camera No:

Payment & Shipping Terms

Gentle Sort Belt-Type Fresh Shrimp Color Sorter

Get Best Price

Video

32-Channel Small Intelligent Coffee Beans Color Sorter

Get Best Price

Video

Ai Intelligent Belt-Type Optical Color Sorter For Irregular Materials (Sunflower Seeds)

Get Best Price

Video

High Precision 64 Channel Rice,Optical Sorting Machine, 99.9% Accuracy.

Get Best Price

86--13705693517

wallacefw@gmail.com

86--4008266163-11311

Contact Now

Product Description

Gentle Sort Belt-Type Fresh Shrimp Color Sorter 0

Model	Cameras	Air Pressure	Power(KW)	Voltage	Weight (kgs)	Carryover	Dimension (mm)
ZLD30-C2L1	2	0.6~0.8 Mpa	2.5	220V/50Hz	470	≥30:1	29529001632
ZLD60-C4L1	4	0.6~0.8 Mpa	3	220V/50Hz	780	≥30:1	286412001632
ZLD60-C8L2	8	0.6~0.8 Mpa	5	220V/50Hz	980	≥100:1	361813322495
ZLD120-C8L1	8	0.6~0.8 Mpa	3.5	220V/50Hz	1200	≥30:1	375017501950
ZLD120-C16L2	16	0.6~0.8 Mpa	7.5	220V/50Hz	1500	≥100:1	390022052500
ZLD180-C12L1	12	0.6~0.8 Mpa	5.5	220V/50Hz	1400	≥30:1	350026502200
ZLD180-C24L2	24	0.6~0.8 Mpa	10.9	220V/50Hz	1900	≥100:1	400026503200

Fresh shrimp are soft in texture. However, the belt-type color sorter uses a horizontal conveyor belt, allowing the shrimp to remain almost stationary from the feeding stage to the recognition area. This eliminates the mutual squeezing and collision that occur during sliding, minimizing the breakage rate - which is essential for preserving the integrity and market value of the shrimp.

In addition, the machine actively conveys materials via the belt at a controllable speed, creating a highly stable environment for camera recognition. Equipped with high-definition CCD cameras and combined "color sorting + shape sorting" technology, the sorter can not only remove discolored (reddish or whitish) shrimp based on color, but also accurately screen out impurities or defective products by shape. As a result, the sorting accuracy can reach over 99%, far exceeding manual sorting performance.
Application
Seafood & Aquatic Products:

Dried small shrimp
Dried small fish / dried fish
Squid rings
Shellfish meat

Fresh Products:

Frozen fruits (strawberries, blueberries)
Diced vegetables (onion dices, carrot dices, garlic cloves)

Dried Products:

Raisins
Goji berries (also known as wolfberries)
Dried cranberries
Various types of dehydrated vegetables
