Hot Air Furnace With Biomass Combustion Systems

Hot Air Furnace With Biomass Combustion Systems

2 Million Kcal/H Hot Air Furnace

Biomass Combustion Hot Air Furnace

Hot Air Furnace For Grain Dryer

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Suspended Combustion
Heat Exchanger:
Indirect Heating
Husk Consumption:
250~600 Kg/h
Ash Discharge:
50~60 Kg/h
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
in Bulk
Delivery Time
35 working days
Payment Terms
T/T, L/C
Supply Ability
30 sets per month
Product Description

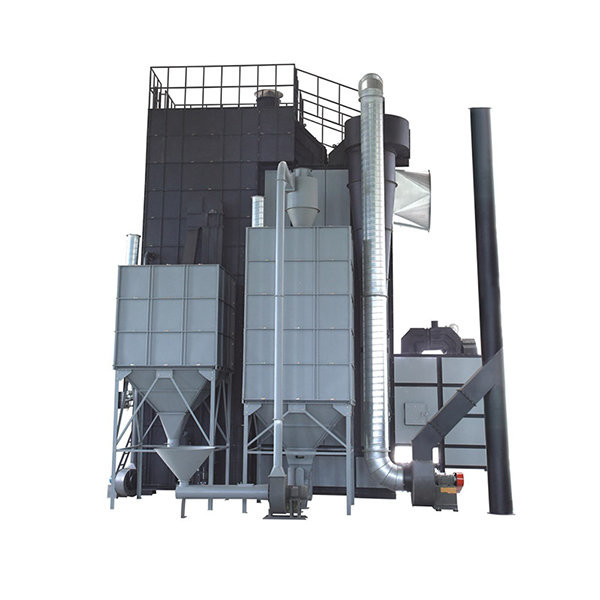

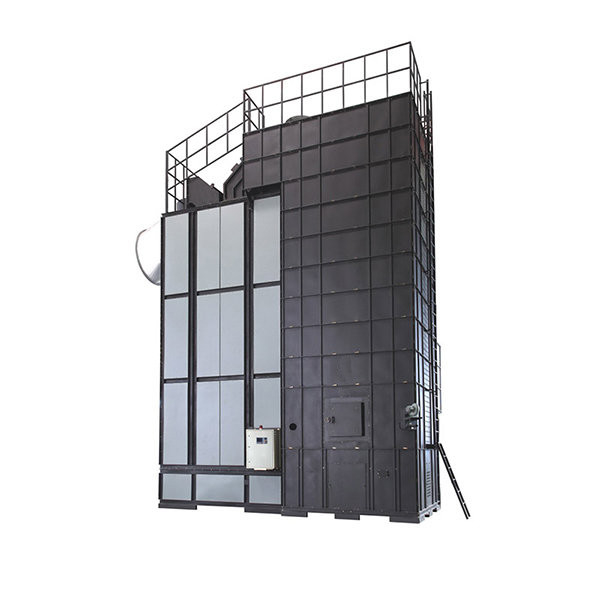

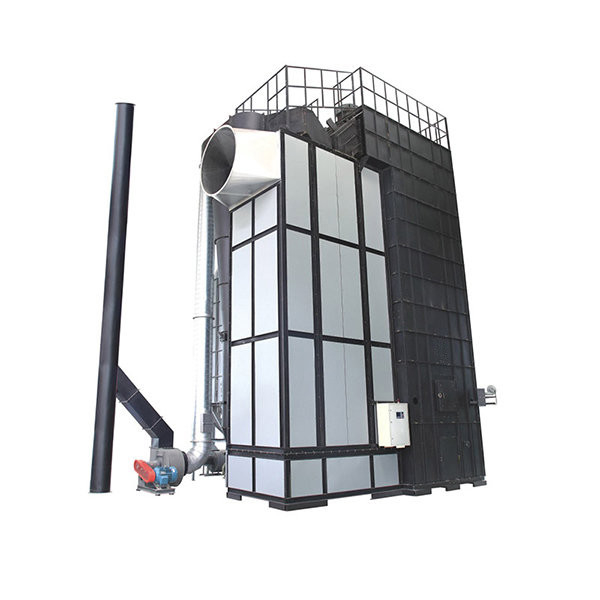

Hot air furnace with Biomass combustion systems 2 million Kcal/h for grain dryer


Hot air furnace is the company for the use of renewable resources, energy saving development of a new model. The model has husk bran generator, husk feeder, ash and smoke removal system, etc., each step is automatic control, the temperature can be accurately controlled at ±1 °C. The structure design is reasonable, the technical performance indicators have met the requirements of the plan, the series of husk furnace dryer, the use of biomass bran as fuel, save energy and reduce costs.


Main Features

Using indirect hot air, the clean hot air passing through the heat exchanger has no tar and will not contaminate the grain

Fully automatic hot air temperature control, temperature difference control at ±1 °C

The coarse bran and ash discharge are fully automatic, and the computer automatically calculates the hot air demand of the dryer and transports the heat correctly

Completely use biomass as raw material, low cost, energy saving and environmental protection. Waste biofuels such as grain bran, wood (chips), wheat stalks, peanut stalks, straw, corn cobs (stalks). The heat produced by burning 2.5 kg of bran is equivalent to that of 1 litre of diesel.


Detailed Parameters


Parameter name Value
Thermal power KJ/h 2,000,000
Combustion method Suspended combustion
Heat exchanger method Indirect heating
Power 21.1 kw
Heat efficiency ≥80%
Hot air temperature ℃ 140~170
Husk Consumption 250~600 kg/h
Ash Discharge 50~60 kg/h
Number of dryers heated 5HXG-15T×13 sets/5HXG-30T×7 sets
Dimension L×W×H(mm) 6790*6650*9250
