2 Sets 15 Ton Per Batch Rice Dryer With One Husk Furnace And Diesel Burner

2 Sets 15 Ton Per Batch Rice Dryer With One Husk Furnace And Diesel Burner

15 Ton Per Batch Rice Dryer

Diesel Burner Rice Grain Dryer

15T Loading Rice Grain Dryer

Place of Origin:

China

Brand Name:

ZENVO

Certification:

CE

Model Number:

5HXG-15 X 2SETS

Contact Us

Request A Quote
Product Details
Batch Capacity:
30 Ton (2 Sets *15)
Application:
Raw Paddy
Fuel:
Coal, Straw, Paddy Husk Etc.
Heating Method:
Indirect
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Wooden Package
Delivery Time
15 working days
Payment Terms
T/T, L/C
Supply Ability
100 sets per month
Product Description

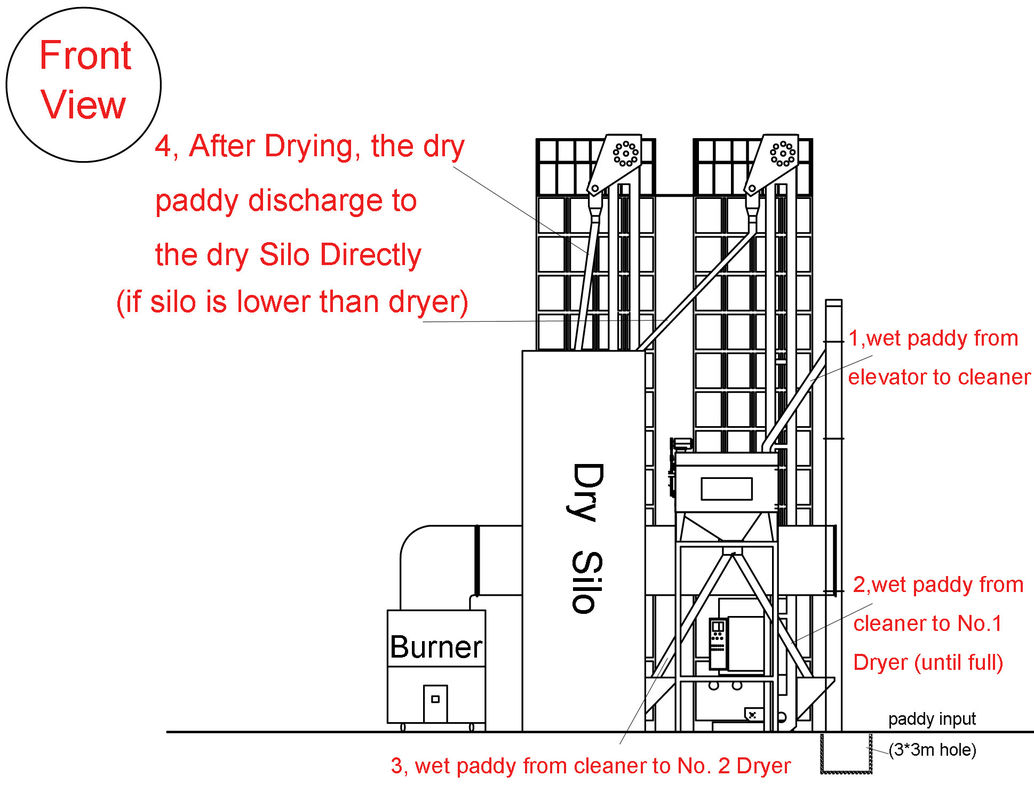

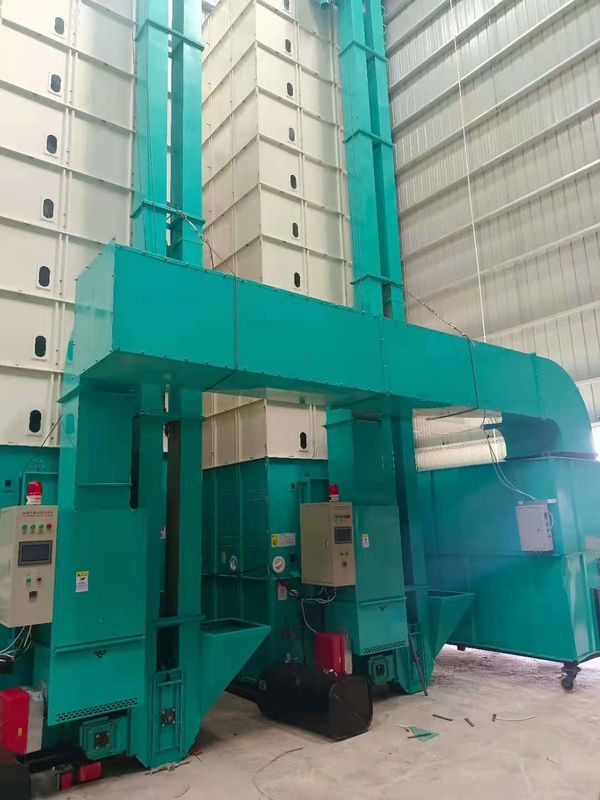

2 sets of 15 ton per batch rice dryer with one husk furnace and diesel burner



Features:

1. Multi-functional design which is applied to paddy, wheat, corn, soybean, rapeseed and other seeds. The dryer adopts indirect heating which is non-pollution and can remove the dust in the grain.
2. Adopt the circulation low drying technique which can improve the drying speed and quality.
3. New unloading design to avoid blocking, leakage, remaining of the grain and/or other seeds.
4. The grind proof design adopts a plate for scattering the grain in the top of the dryer. The blade of the plate is circular which is processed with shape.
5. There is a short contact time between the grain and the plat, so it does not need too much driving power, which can radically solve the cracking and grinding problems.
6. The grain has increased crack percentage will be less than 1% and increased grinding rate will be less than 0.1%, which both superior to the international standard.



Advantages of the Dryer:
1. High quality grain / wheat / rice  and other seeds after drying for better selling at good price.
2. Large capacity, high efficiency and the best product in the market.
3. Low drying cost, long service lift, easy operation and maintenance.
4. Full-automation in feeding, conveying, drying, moisture control and optional bagging after drying.
5. Advanced product layout and nice appearance.



Technical Parameters:

Model 5HXG-15 5HXG-22 5HXG-30
Loading Capacity (Paddy) 15T 22T 30T
Overall Dimension (L*W*H) 2224*3161*9410mm 4400*4500*11600mm 4500*4300*12700mm
Weight 3000 KGS 4155 KGS 5630 KGS
Voltage Three Phase 380V /440V
Heating Method Indirect
Total Motor Power 8.503 kW 8.903 kW 15.853 kW
Drying Rate 0.5~1.2% / h
Load Time 40~50 min 45~55 min 50~60 min
Discharge Time 55~65 min 60~70 min 65~75 min
Safety Device Overload saftey device, temperature control device, grain overload alarm, chain fault detector, timer switch, control fuse.



*The parameters are just for reference. Actual data will differ from grain quality, moisture content, ambient temperature and humudity.

*Specification is subject to change without notice
