No Auger Type Mixed Flow Dryer 22 Ton Per Batch For Maize Paddy

No Auger Type Mixed Flow Dryer 22 Ton Per Batch For Maize Paddy

LPG Mixed Flow Dryer

No Auger Mixed Flow Dryer

22 Ton Per Batch Maize Dryer

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
22 Ton/ Batch
8.9 KW
11.6 M
Drying Rate:
0.6~1.8% / H
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
Wooden Package
Delivery Time
20 working days
Payment Terms
T/T, L/C
Supply Ability
50 sets per Month
Product Description

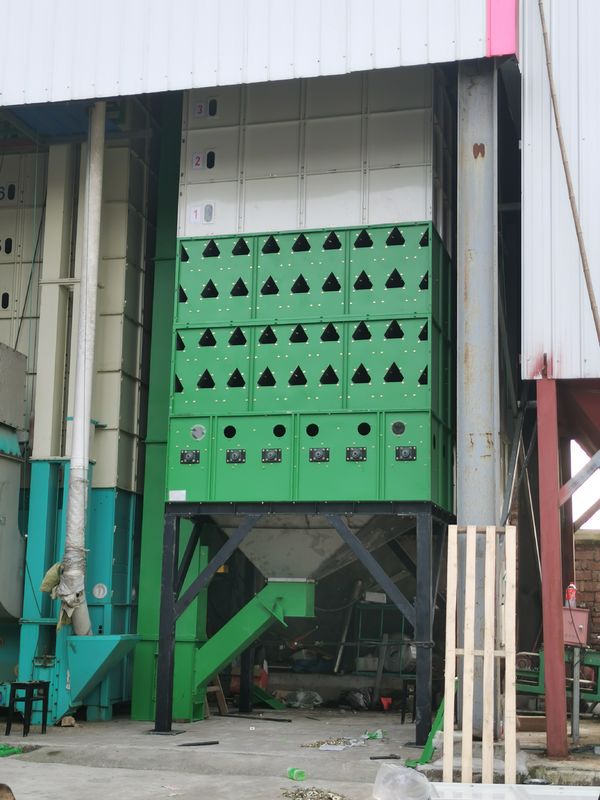

22 Ton Per Batch No Auger Type Mixed Flow Dryer For Maize And Paddy

The 22 ton per batch dryer adopts mixed flow drying technology, with a higher dehydration rate, is perfect for maize drying.

The materials are from famous steel company with high quality steels.

It is very popular for small rice mills or flour mills because of cost effective and high drying quality.

The fuel can be rice hull, coal, maize cob or diesel and LPG.


Technical Parameters:

Model 5HZV-6 5HZV-15 5HZV-20 5HZV-30
Loading Capacity (Paddy) 6T 15T 20T 30T
Overall Dimension (L*W*H) 3418*3180*7671mm 2588*3695*12775mm 4400*4500*11600mm 4950*4004*14610mm
Weight 2001 KGS 3300 KGS 4155 KGS 6800 KGS
Voltage Three Phase 380V /440V
Total Motor Power 4.903 kW 8.103 kW 10.903 kW 14.523 kW
Drying Rate 0.6~1.8% / h
Load Time 20~30 min 40~50 min 45~55 min 50~60 min
Discharge Time 25~35 min 55~65 min 60~70 min 65~75 min
Safety Device Overload saftey device, temperature control device, overload alarm timer, chain fault detector, timer switch, control fuse.

*The parameters are just for reference. Actual data will differ from grain quality, moisture content, ambient temperature and humudity.

*Specification is subject to change without notice.
