35 Ton Per Batch Maize Dryer Machine With No Auger Mixed Flow Drying Method

35 Ton Per Batch Maize Dryer Machine With No Auger Mixed Flow Drying Method

Mixed Flow Batch Maize Dryer

Mixed Flow Maize Dryer Machine

PLC Control Maize Dryer Machine

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Mixed-Flow Batch Type
35ton Per Batch
Maize, Soybean, Seeds Etc.
Dehydration Rate:
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
Wooden Package
Delivery Time
15 working days
Payment Terms
T/T, L/C
Supply Ability
30 Sets Per Month
Product Description

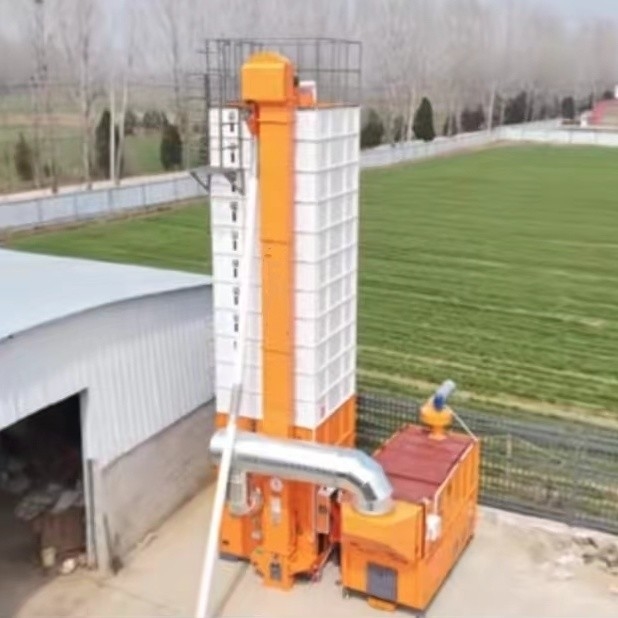

35 tons/batch corn dryer, using mixed flow drying method
The mixed flow dryer is widely used for various grains such as corn, soybeans, and wheat.
Automatically monitor temperature and humidity during machine operation;
Special air duct design makes drying more efficient and energy-saving;
It can be equipped with various types of heat, such as gas, diesel, corn stoves, rice husks, etc.
For safety reasons, multiple safety devices are equipped during the drying process.
Adopting PLC control, screen friendly control.



Model 5H-35H
Type Batch recycling(mix flow)
Volume(t) Paddy(560kg/m3) 35
Wheat(700kg/m3) 40
Corn(700kg/m3) 40
Volume m3 39 Weight kg 3800
Dimension(mm)  5290*4798*15020mm(L×W×H)
Burner Type Hot Air Furnace
Ignition Manual
Fuel Biomass, Coal
Consumption kg/h Husk ≤35
Coal ≤22
Voltage Three Phase 380V/50HZ
Output Power Elevator Motor (kW) 2.2 (1420 r/min)
Fan motor (kW) 5.5x2
Paddy discharge motor (kW) 0.4 (1410 r/min)
Upper Paddy discharge motor (kW) 0.55 (1390 r/min)
Dust removal motor (kW) 0.37 (2900 r/min)
Full paddy motor (kW) 0.003
Total (kW) 18.023
  Load time Paddy/Corn (min) 40—50 / 40—50
Discharge time Paddy/Corn (min) 55—65 / 55—65
Drying Rate Paddy/Corn (%/h) 0.8—1.8 / 1.0—2.0
  Safety Device full load buzzer,thermal-over relay,temperature controller,hot air temperature sensor,overload protection device,leakage protection device
Standard Device online moisture monitor,grain temperature sensor, ladder
