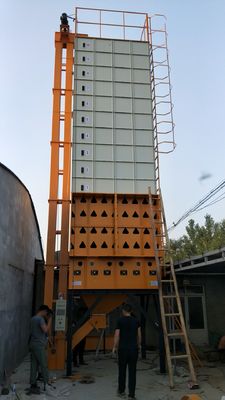

22 Ton Per Batch Maize Dryer Machine With Mixed Flow Drying Method

22 Ton Per Batch Maize Dryer Machine With Mixed Flow Drying Method

Mixed Flow Batch Maize Dryer

Mixed Flow Maize Dryer Machine

PLC Control Maize Dryer Machine

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Mixed-Flow Batch Type
22 Ton Per Batch
Maize, Soybean, Seeds Etc.
Dehydration Rate:
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
Wooden Package
Delivery Time
15 working days
Payment Terms
T/T, L/C
Supply Ability
30 Sets Per Month
Product Description

22 Ton per Batch Maize Dryer with Mixed Flow Drying Method


Mixed flow dryer is widely used for many grains including maize, soybean, wheat, etc.
Temperature and moisture are monitored automatically during the machine working time;
Special Air ducts design makes the drying more efficient and energy saving;
Can be equipped with various heat such as gas, diesel, corn hob,paddy husk etc.
Multiple safte devices are equipped during the drying for safety sake.
Controlled by PLC, friendly screen control.



Model 5H-22H
Type Batch recycling(mix flow)
Volume(t) Paddy(560kg/m3) 22
Wheat(700kg/m3) 25
Corn(700kg/m3) 25
Volume m3 39 Weight kg 3800
Dimension(mm) 4250×3350×11600 (L×W×H)
Burner Type Hot Air Furnace
Ignition Manual
Fuel Biomass, Coal
Consumption kg/h Husk ≤35
Coal ≤22
Voltage Three Phase 380V/50HZ
Output Power Elevator Motor (kW) 2.2 (1420 r/min)
Fan motor (kW) 5.5
Paddy discharge motor (kW) 0.4 (1410 r/min)
Upper Paddy discharge motor (kW) 0.55 (1390 r/min)
Dust removal motor (kW) 0.37 (2900 r/min)
Full paddy motor (kW) 0.003
Total (kW) 13.023
  Load time Paddy/Corn (min) 40—50 / 40—50
Discharge time Paddy/Corn (min) 55—65 / 55—65
Drying Rate Paddy/Corn (%/h) 0.8—1.8 / 1.0—2.0
  Safety Device full load buzzer,thermal-over relay,temperature controller,hot air temperature sensor,overload protection device,leakage protection device
Standard Device online moisture monitor,grain temperature sensor, ladder
