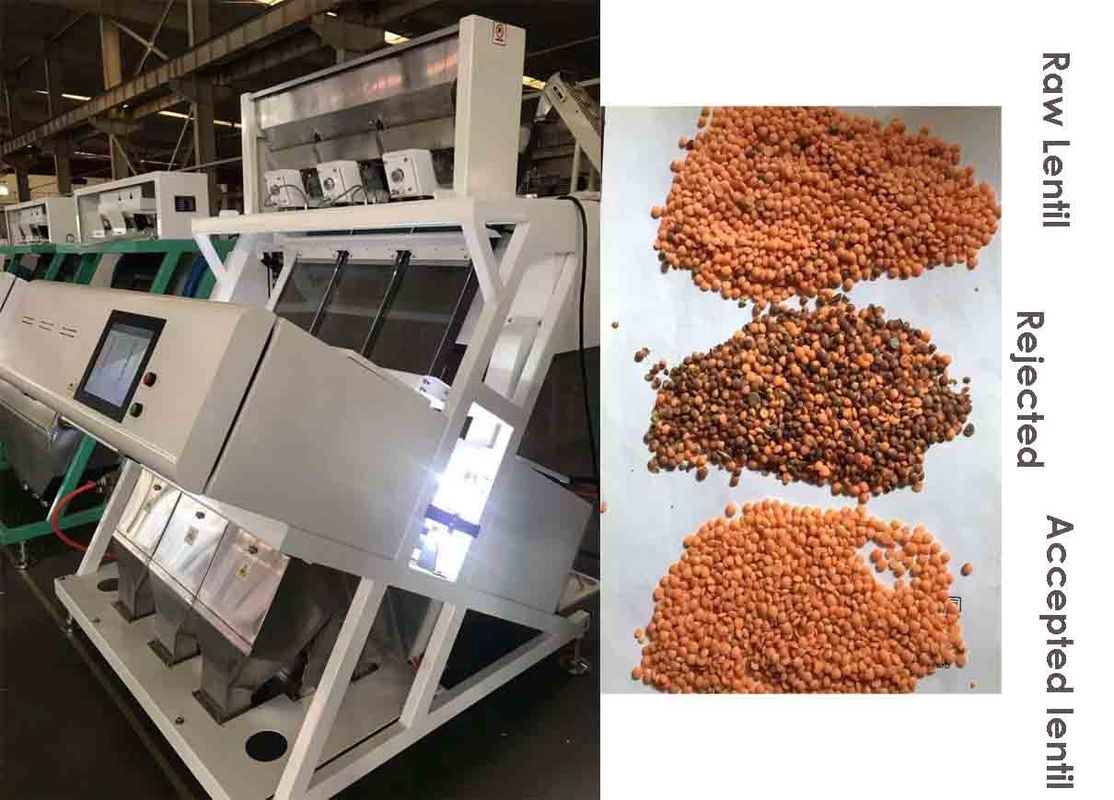

| Product Name: | Optical Color Sorter | Applications: | Lentils |
|---|---|---|---|
| Accuracy: | 99.99% | Capacity: | 1.5 Ton/h |
| Carryover: | >15:1 | Chutes No.: | 3 |
| High Light: | 3 Chutes Grain Sorting Machine,1.5T/H Grain Color Sorter Machine,Lentils Optical Color Sorter |
||
Product Parameters
| Model | Channels(t/h) | Throughput | Accuracy(%) | Optimized Carryover | Power(KW) | Dimension(mm)(L*W*H) | Weight(Kg) |
|---|---|---|---|---|---|---|---|
| ZM3 | 189 | 2~5 | 99.99 | ≥15:1 | 2.4 | 1650*1590*2050 | 830 |
| ZM4 | 252 | 2.5~6 | 99.99 | ≥15:1 | 2.6 | 1870*1590*2050 | 1080 |
| ZM5 | 315 | 3.5~8 | 99.99 | ≥15:1 | 2.9 | 2210*1590*2050 | 1330 |
| ZM6 | 378 | 4.5~10 | 99.99 | ≥15:1 | 3.6 | 2510*1590*2050 | 1480 |
| ZM7 | 441 | 5.5~12 | 99.99 | ≥15:1 | 3.9 | 2830*1590*2050 | 1630 |
| ZM8 | 504 | 6~14 | 99.99 | ≥15:1 | 4.6 | 3150*1590*2050 | 1780 |
The above parameters are for reference only and may vary as per types of raw materials and contamination rates.
Specific parameters will be altered according to different materials and contamination rates on site of customers.
Advantages:
|
Tri-chromatic CCD Image Acquisition System 5400 pixel, identify 0.01mm2 defects. |
Intelligent Image Processing Algorithm ALTERA FPGA, intelligent & speedy . |
Premium Light System LED lighting, higher stability. |
Advanced Feeding System Special anodized chute, higher capacity. |
|
Excellent Rejection Rate Quality image acquisition& processing& nozzle system |
