| Ejector No.s: | 128 | Camera No.s: | 4 |
|---|---|---|---|
| Capacity: | 500~20000 Kgs/h | Accuracy: | 99.99% |
| High Light: | 128 Channels CCD Color Sorter Machine,2 Chutes Optical Sorting Equipment,99.99% Accuracy CCD Color Sorter Machine |
||

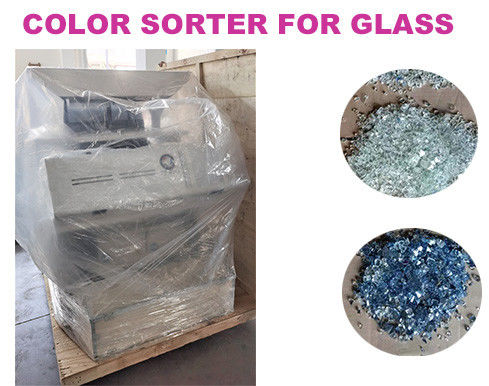

128 Channels 2 Chutes CCD Color Sorter Machine For Glasses
Advantages
-High-frequency vibrator, anti-oxidation anode treatment slideway, increases the output;
-Intelligent magnetic control high-frequency solenoid valve: the valve opens and closes with a fast response speed;
-Intelligent image processing system: the world's leading full-color ultra-high-speed three-line scanning CCD sensor (54 million pixels X3), perfect processing of small defects in the material, the smallest scanning, recognition area can reach 0.04mm2, color + shape multi-line processing;
-Automatically collect data such as color, shape, size, and flaws to achieve accurate collection of the original characteristics of materials, and perform autonomous operations and intelligent identification according to the selection rules;
-LED shadowless cold light source, matching digital stepless dimming technology, according to material selection requirements, matching the best lighting brightness and color;
-More accurate identification, lower energy consumption, and stronger stability.
Technical Features:
Small size but big usage for more customers use;
Multiple sorting solutions can meet various demands;
Brand-new structure design, easy installation and operation;
Color Sorting + Shape Sorting mode, suitable for multiple materials sorting.
Specifications:
| Model | Channels | Throughput(t/h) | Accuracy(%) | Optimized Carryover | Power(Kw) | Dimension(mm)(L*W*H) | Weight(Kg) |
| ZR1 | 64 | 0.5~1.8 | 99.99 | ≥12:1 | 0.9 | 935*1520*1600 | 320 |
| ZR2 | 128 | 1~3 | 99.99 | ≥12:1 | 1.2 | 1250*1530*1600 | 400 |
| ZR3 | 192 | 2~5 | 99.99 | ≥12:1 | 2 | 1650*1580*1870 | 1030 |
