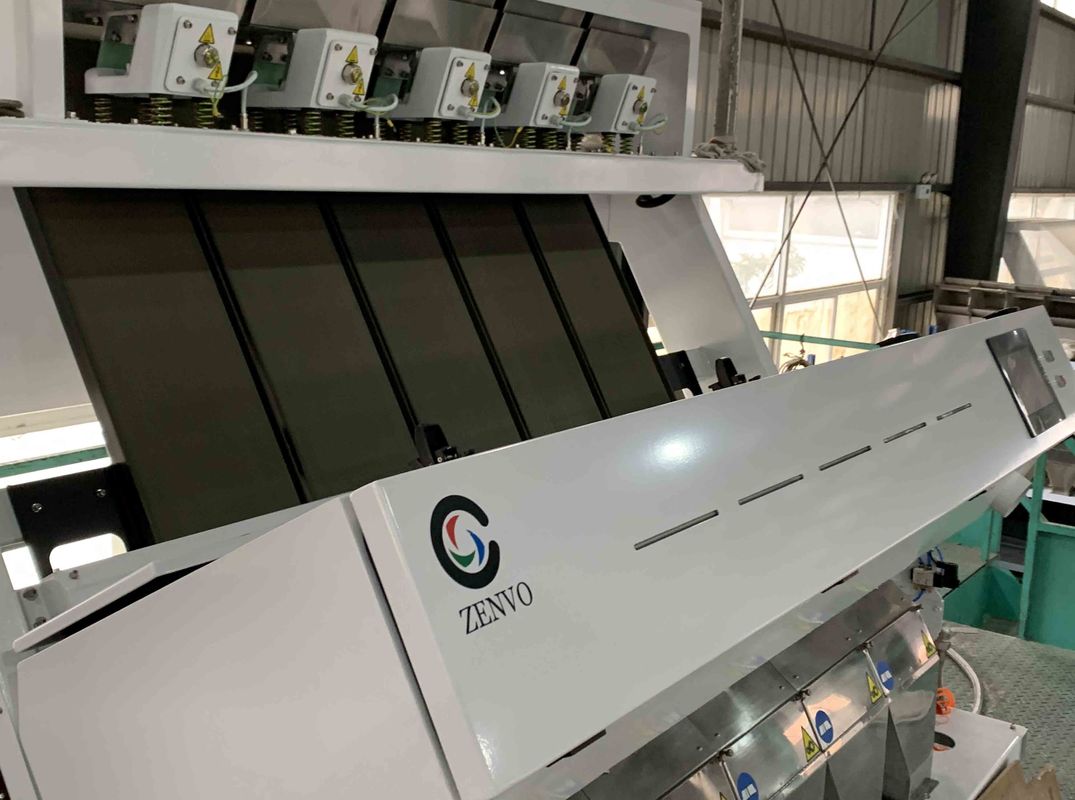

320 Channels 5 Chutes CCD Color Sorter Machine For Chinese Pepper

Good packaging, received product well.

—— Lareina

Thanks for Zenvo Machinery's lasting supporting and guidence. With your help and instruction, I won more market share.

—— Morena

Thanks for your kindly hospitality. Your company is very professional, we will have nice cooperation in the near future.

—— James

Please develop more nice machines and with better prices, so we can sell your machines to more clients and gain larger markets. Thank you.

—— John Lenson

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— George

Through very good communication all problems solved, satisfied with my purchase.

—— Alex

I'm Online Chat Now

320 Channels 5 Chutes CCD Color Sorter Machine For Chinese Pepper

320 Channels 5 Chutes CCD Color Sorter Machine For Chinese Pepper
320 Channels 5 Chutes CCD Color Sorter Machine For Chinese Pepper
video play

Large Image :  320 Channels 5 Chutes CCD Color Sorter Machine For Chinese Pepper

Product Details:
Place of Origin: China
Brand Name: ZENVO
Certification: CE
Model Number: ZR5
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Ejector No.s: 320 Camera No.s: 10
Capacity: 800~2500 Kgs/h Accuracy: 99.99%
High Light:

5 Chutes CCD Color Sorter Machine

,

Chinese Pepper CCD Color Sorter Machine

,

320 Channels Optical Sorting Machine

5 chutes CCD Color Sorter machine for Chinese Pepper



High-speed feeding system: high-frequency vibrator, anti-oxidation anode treatment slideway, which greatly increases the output, which is 20~30% higher than that of similar products;

Intelligent magnetic control high-frequency solenoid valve: the valve opens and closes with a fast response speed, with a service life of 6-10 billion times;

Intelligent image processing system: the world's leading full-color ultra-high-speed three-line scanning CCD sensor (54 million pixels X3), perfect processing of small defects in the material, the smallest scanning, recognition area can reach 0.04mm2, color + shape multi-line processing.;

Intelligent image acquisition system: Automatically collect data such as color, shape, size, and flaws to achieve accurate collection of the original characteristics of materials, automatically determine and match the best optimal plan, and perform autonomous operations and intelligent identification according to the selection rules;

Intelligent stepless dimming system: LED shadowless cold light source, matching digital stepless dimming technology, according to material selection requirements, matching the best lighting brightness and color, more accurate identification, lower energy consumption, and stronger stability.



Technical Features:

Small size but big usage for more customers use;

Multiple sorting solutions can meet various demands;

Brand-new structure design, easy installation and operation;

Color Sorting + Shape Sorting mode, suitable for multiple materials sorting.



Specifications:

Model Channels Throughput(t/h) Accuracy(%) Optimized Carryover Power(Kw) Dimension(mm)(L*W*H) Weight(Kg)
ZR2 128 1~3 99.99 ≥12:1 1 1550*1380*1810 450
ZR3 192 2~5 99.99 ≥12:1 2 1650*1580*1870 1030
ZR4 256 2.5~6 99.99 ≥12:1 2.4 1970*1580*1870 1180
ZR5 320 3.5~8 99.99 ≥12:1 2.9 2290*1580*1870 1330
ZR6 384 4.5~10 99.99 ≥12:1 3.4 2610*1580*1870 1480
ZR7 448 5.5~12 99.99 ≥12:1 3.9 2930*1580*1870 1630
ZR8 512 6~14 99.99 ≥12:1 4.4 3250*1580*1870 1780
