| Application: | Rice Paddy, Wheat, Etc. | Electric Box: | Schneider Brand |
|---|---|---|---|
| Fan Motor: | Centrifugal | Moisture Meter: | Online |
| High Light: | 30 Ton Per Batch Recirculating Dryer,Rice Paddy Recirculating Batch Dryer,30 Ton/Batch Recirculating Dryer |
||

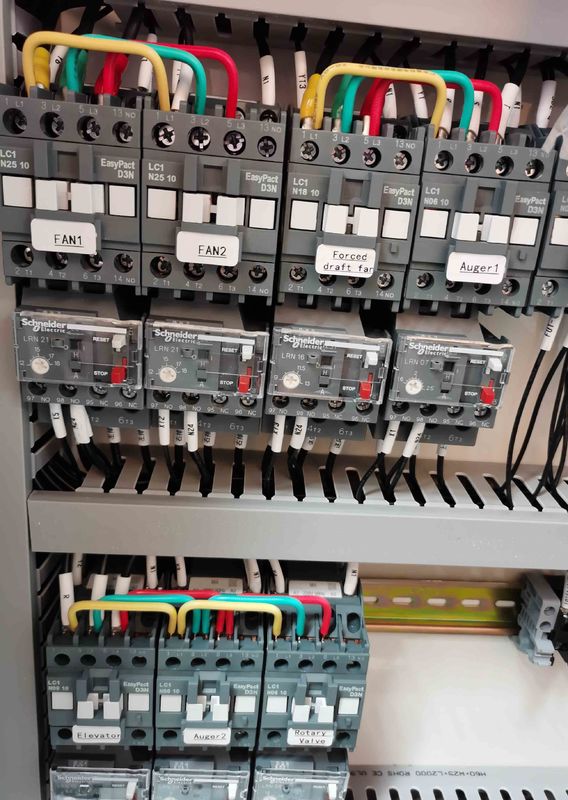

30 ton per batch recirculating dryer for rice paddy with schneider electric box
Paddy Dryer Machine Working Principle:
1. Paddy Loading
The Paddy is raised to the top of the drying box through the elevator until it is full.
2. Running(re-circulating):
The elevator is running all the time. When the Paddy reaches the bottom under the action of self-weight, the elevator raises the Paddy to the top and dries slowly from top to bottom
3. Drying:
The hot air passes through the drying layer horizontally. The grain is fully contacted with the drying layer after heating, and achieved drying effect.
Technical Parameters:
| Model | 5HXG-15 | 5HXG-22 | 5HXG-30 |
| Loading Capacity (Paddy) | 15T | 22T | 30T |
| Overall Dimension (L*W*H) | 2224*3161*9410mm | 4400*4500*11600mm | 4500*4300*12700mm |
| Weight | 3000 KGS | 4155 KGS | 5630 KGS |
| Voltage | Three Phase 380V /440V | ||
| Heating Method | Indirect | ||
| Total Motor Power | 8.503 kW | 8.903 kW | 15.853 kW |
| Drying Rate | 0.5~1.2% / h | ||
| Load Time | 40~50 min | 45~55 min | 50~60 min |
| Discharge Time | 55~65 min | 60~70 min | 65~75 min |
| Safety Device | Overload saftey device, temperature control device, grain overload alarm, chain fault detector, timer switch, control fuse. | ||
*The parameters are just for reference. Actual data will differ from grain quality, moisture content, ambient temperature and humudity.
*Specification is subject to change without notice
